Solutions

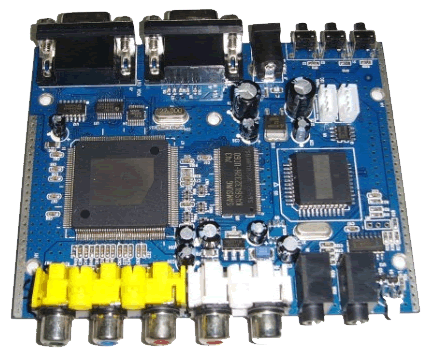

YPbPr to VGA Solutions
1. Introduction:
By using digitizing converted chips to convert YPbPr signal to lossless standard VGA output mode.
2.Applications
Link up video games with displayers and other display fields.
3. Specification
input port: VGA,YPbPr,AUDIO-IN
output port: VGA,AUDIO-OUT
input mode:
   YPbPr input mode:480I/P、576I/P、720P、1080I、1080P
   VGA input mode: VGA、XGA、SVGA、SXGA、UGA
output mode: VGA/RGBHV 480I/P、576I/P、720P、1080I、1080P
Audio port: AUDIO-IN,L/R,AUDIO-OUT
4. Function & Features
Support PS2, PS3, XBOX, XBOX360, NGC, WII, PSP2000, DVD, camera, projector,
DTV, SATV etc.
Ypbpr input:480i/p, 576i/p, 720p, 1080i,1080p;
Output: SVGA, XGA, SXGA, 800x600, 1024x768, 1280x1024, 1440x900,1440x1050,
1600x1200,1680x1050, 1920x1200, 1920x1080 etc.
Support (4:3) format signal a perfect display in (16:10) widescreen displayer at the
rate of 4:3.
Support (16:9) format signal a perfect display in (16:10) widescreen displayer at the
rate of 16:9.
Support (4:3) format signal a perfect display in (5:4) widescreen displayer at the rate of 4:3.
VGA-IN can connect directly with VGA-OUT on standby.
One button convert, simple and convenient
